SC101

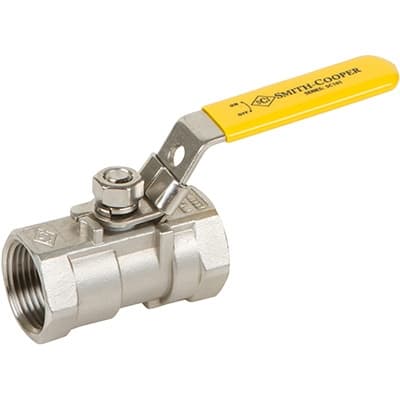

316 Stainless Steel 1000 CWP 1-Piece Ball Valve
The SC101 valve is a versatile choice with a locking handle for secure operation. It features a body and ball made from ASTM A351 GR CF8M (SS316), ensuring corrosion resistance and durability. The seat material is RTFE for effective sealing. This valve has a 1000# CWP (Class 1000) rating and a 150# WSP (Working Steam Pressure) rating, with a reduced port design. It includes a stem made from ASTM A276 T-316 and features a pressure balance hole in the ball slot for improved performance. The SC-101 valve is designed with RTFE seats and a blow-out proof stem, making it suitable for various applications. It also conforms to MSS SP-110 standards, is manufactured under ISO 9001:2008, and is lead-free.
Material:
Size:
| Item code | Item name | Qty | List price | Your price | Total | Edit |
|---|---|---|---|---|---|---|
SC101C | 1/4 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $28.45 | Your price | Total $28.45 | |
SC101E | 3/8 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $28.45 | Your price | Total $28.45 | |
SC101G | 1/2 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $32.91 | Your price | Total $32.91 | |
SC101I | 3/4 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $40.85 | Your price | Total $40.85 | |
SC101K | 1 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $61.26 | Your price | Total $61.26 | |
SC101M | 1 1/2 Inch - 316 Stainless Steel One-Piece Ball Valve Series SC101 | Quantity | List price $109.38 | Your price | Total $109.38 |
