The 58876 Series Ball Valve is constructed from 316 Stainless Steel (ASTM A351 CF8M), known for its resistance to corrosion, making it ideal for challenging industrial applications. The unibody design strengthens the valve's structure and helps eliminate leak points. With an operational capacity up to 800 WOG (Water, Oil, Gas) and NPT threaded ends, this valve ensures easy installation and broad compatibility with various systems.
The valve leverages a PTFE seat, chosen for its low maintenance needs and durability due to its chemical resistance and low friction. It maintains flow efficiency, demonstrated by a Cv of approximately 5.5 gpm, important for applications necessitating specific flow rates.

SC-58876, 316 Stainless Steel 800 WOG Reduced Port Threaded 1-Piece Ball Valve - Series 58876, provided by Titan Fittings

SC-58876

SC-58876 | 316 SS Unibody Ball Valve, 800 WOG - Series 58876 | Titan Fittings

316 SS Unibody Ball Valve, 800 WOG - Series 58876

The SC-54576 Ball Valve is made from robust 316 Stainless Steel, handling pressures up to 2000 WOG, 1500 WOG, and steam conditions of 150 lb. It features a standard port and RTFE seat for reliable flow and chemical resistance, complemented by safety features like a blowout-proof stem and lockable device. The valve complies with ISO 9001:2008 standards, ensuring quality and reliability. Additionally, it offers customization with optional spring return or oval handles and Nova Seats for use in environments up to 500 degrees Fahrenheit. These technical aspects highlight the valve's suitability for various industrial uses.

SC-54576, 316 Stainless Steel 2000 WOG Standard Port Threaded 2-Piece Ball Valve Series 54576, provided by Titan Fittings

SC-54576

SC-54576 | 316 SS Ball Valve, 2000/1500 WOG - Series 54576 | Titan Fittings

316 SS Ball Valve, 2000/1500 WOG - Series 54576

The SC-50M76 Series Ball Valve is a full port, 316 Stainless Steel valve, able to handle up to 1000 WOG. It features a blow-out proof stem and locking device for secure operation, with an optional oval handle for usability. The valve has a durable RTFE seat, offers a Cv of 6 gpm for efficient flow, and comes with threaded end connections for easy installation. Manufactured under ISO 9001:2008 standards, it ensures quality and reliability in demanding industrial environments.

Buy online Sharpe 50M76 Series Ball Valves at Titan Fittings. Find near me stainless steel ball valves.

SC-50M76

SC-50M76 | 316 SS Full Port Ball Valve, 1000 WOG - Series 50M76 | Titan Fittings

316 SS Full Port Ball Valve, 1000 WOG - Series 50M76

The SC-50B76 Series Ball Valve, built with 316 Stainless Steel, withstands up to 2000 CWP (1/4" - 2") and 1500 CWP (2-1/2" & 3"), with a 150 WSP rating for its RTFE seats. It features a full port and seal weld construction for durability, tested to an 8000 psi shell for reliability under pressure.

Safety mechanisms include a blow-out proof stem and a locking device. The valve is efficient, with a Cv of 6 gpm, and the RTFE seats and seals offer robust chemical resistance. Threaded end connections enable straightforward integration, and adherence to ISO 9001:2008 standards underscores its quality. This series presents a reliable option for high-pressure, industrial applications.

Buy online Sharpe 50B76 Series Ball Valves at Titan Fittings. Find near me stainless steel ball valves.

SC-50B76

SC-50B76 | 316 SS Full Port Ball Valve, 2000/1500 WOG - Series 50B76 | Titan Fittings

316 SS Full Port Ball Valve, 2000/1500 WOG - Series 50B76

The SC-50C76 Series Ball Valve is designed for up to 3000 CWP and features a full port and seal weld construction. Made from 316 Stainless Steel, it adheres to ASTM A351 CF8M, ASTM A216 WCB, and NACE MR-0175 standards. Key features include a locking device, live-loaded stem, blow-out proof stem, and an anti-static device. It uses a durable Delrin seat and provides an ISO 5211 mounting pad for automation compatibility. The valve has threaded end connections and meets ISO 9001:2008 quality standards.

SC-50C767, 316 Stainless Steel 3000 WOG Seal Welded Threaded Ball Valve - Series 50C76, provided by Titan Fittings

SC-50C767

SC-50C767 | 316 SS Ball Valve, 3000 CWP - Series 50C76 | Titan Fittings

316 SS Ball Valve, 3000 CWP - Series 50C76

The 50F76 Series Ball Valve handles up to 6000 CWP and conforms to ASTM A351 CF8M, ASTM A216 WCB, ASME B16.34 Class 2500, NACE MR-0175, and API 608 standards. Constructed with a seal weld and 316 Stainless Steel, it features a locking device, blow-out proof stem, and anti-static device. The valve uses a Delrin seat for durability and includes an ISO 5211 mounting pad for automation. Threaded end connections facilitate easy integration, all meeting the ISO 9001:2008 quality standards.

SC-50F767, 316 Stainless Steel 6000 WOG Seal Welded Threaded Ball Valve - Series 50F76, provided by Titan Fittings

SC-50F76

SC-50F76 | 316 SS Ball Valve, 6000 CWP - Series 50F76 | Titan Fittings

316 SS Ball Valve, 6000 CWP - Series 50F76

The 53036 Series Ball Valve, suitable for 600-1000 WOG, offers a full port and a 3-piece structure in 316 Stainless Steel. It has RTFE seats, a locking device, and a blow-out proof stem. The valve complies with ASME B16.11 and B16.34, featuring both threaded and socket weld end connections. It's designed for automation with an ISO 5211 mounting pad, manufactured under ISO 9001:2008 standards.

SV53036 - Sharpe 53036 Series Ball Valve - 1000 WOG 3-Piece - Stainless Steel | Titan Fittings

SC-53036

SC-53036 | 316 SS 3-Piece Ball Valve, 1000 WOG - Series 53036 | Titan Fittings

316 SS 3-Piece Ball Valve, 1000 WOG - Series 53036

The N66 Series Ball Valve, rated for 1000 WOG, features a full tube port within a 3-piece 316 Stainless Steel body. It's equipped with TFM seats and clamp ends, incorporating a high-cycle, live-loaded, and blow-out-proof stem. The valve adheres to ISO 5211 standards with its mounting pad, allowing automation integration, and offers a choice between a lockable handle lever or an oval handle. It complies with ISO 9001:2008 quality standards, providing a hygienic seating design and optional cavity-filled seats for enhanced application suitability.

Buy online Sharpe N66 Series Ball Valves With Mouting Pad at Titan Fittings. Find near me stainless steel ball valves.

SC-N66

SC-N66 | 316 SS Sanitary Ball Valve, Full Tube - Series N66 | Titan Fittings

316 SS Sanitary Ball Valve, Full Tube - Series N66

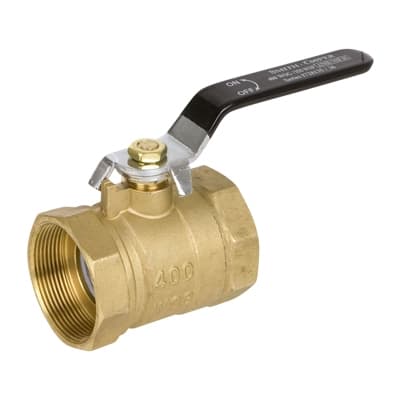

The SC-172813 Ball Valve, constructed from forged brass and designed with a standard port, offers robust performance with a pressure rating of 400 lbs WOG and 150 lbs WSP. It features versatile end connections, accommodating both threaded and sweat types. Key characteristics include a blow-out proof stem with a chrome-plated ball, complemented by PTFE seats and seals for enhanced durability and effective sealing. This valve is certified to NSF/ANSI 61-8 and ISO 9001:2008, ensuring compliance with industry standards and quality assurance.

Shop online Smith Cooper Ball Valve 8135 and 8136 Series at Titan Fittings. Find near me Brass 400/150 WOG Full Port Ball Valves.

SC-172813

SC-172813 | Brass Ball Valve, 400 WOG | Titan Fittings

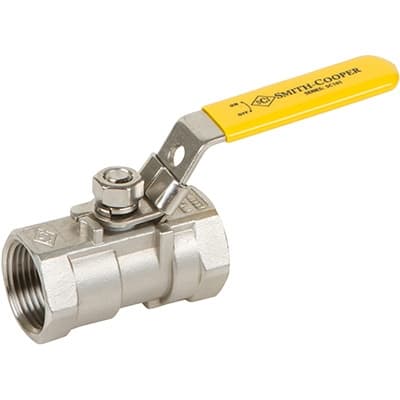

The SC101 valve is a versatile choice with a locking handle for secure operation. It features a body and ball made from ASTM A351 GR CF8M (SS316), ensuring corrosion resistance and durability. The seat material is RTFE for effective sealing. This valve has a 1000# CWP (Class 1000) rating and a 150# WSP (Working Steam Pressure) rating, with a reduced port design. It includes a stem made from ASTM A276 T-316 and features a pressure balance hole in the ball slot for improved performance. The SC-101 valve is designed with RTFE seats and a blow-out proof stem, making it suitable for various applications. It also conforms to MSS SP-110 standards, is manufactured under ISO 9001:2008, and is lead-free.

Shop online Smith Cooper Ball Valve SC101 Series at Titan Fittings. Find near me 1 Piece Reduced Port Stainless Steel Ball Valves.

SC101

SC101 | 316 SS Ball Valve, 1000 CWP | Titan Fittings

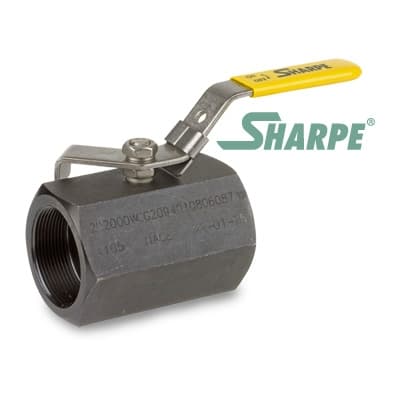

The SC-58B74 valve is designed with threaded end connections for ease of installation. It has a pressure rating of 2000 CWP (Class 2000) and is constructed from carbon steel, ensuring durability. The valve includes an RTFE seat for effective sealing. It is manufactured by an ISO 9001:2008 certified manufacturer, meeting quality standards.

Buy online Sharpe 58B74 Series 1 Piece Ball Valves at Titan Fittings. Find near me carbon steel ball valves.

SC-58B74

SC-58B74 | Steel Ball Valve, 2000 WOG | Titan Fittings

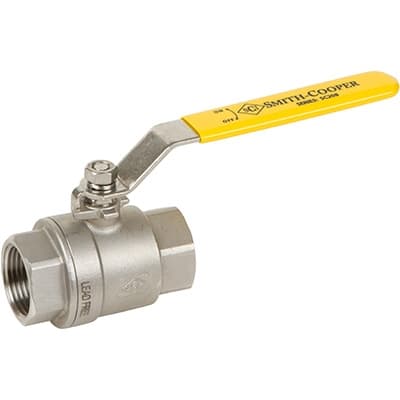

The SC-208 valve is a durable choice with a full port design, constructed from ASTM A351 GR CF8 (SS304) for corrosion resistance. It features RTFE seats for effective sealing and has an 800# CWP (Class 800) rating. The stem is made from ASTM A276 T-304, and the valve includes a pressure balance hole in the ball slot for improved performance. It is suitable for vacuum service up to 29" Hg and conforms to MSS SP-110 standards. The SC-208 valve is manufactured under ISO 9001:2008 standards and is lead-free, meeting various industry requirements.

Shop online Smith Cooper Ball Valve SC208 Series at Titan Fittings. Find near me 2 Piece Full Port Stainless Steel Ball Valves.
