IH-FUEL-305

Advanced Low Permeation Marine Fuel Hose with Barrier Lining

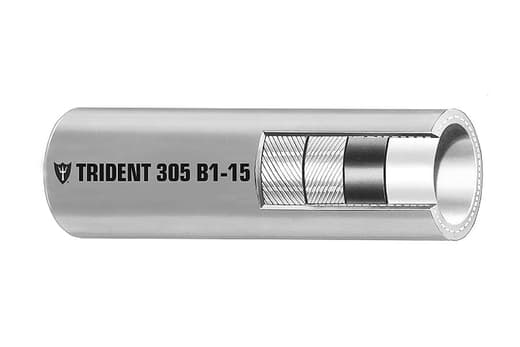

Trident's Barrier Lined B1-15 Fuel Line Hose is versatile, being suitable for both gasoline (up to E85 blends) and diesel (including up to 100% bio-diesel blends). It meets and exceeds multiple industry standards such as ABYC H-24, SAE J1527, and ISO 8469 B1. This hose features a unique inner barrier to prevent fuel direct contact with rubber, protecting your engine from potential debris and providing exceptional resistance to fuel permeation, aging, and environmental factors.

Application:Fuel Supply Line for Outboard Engines

Material:Tube: Fluoroplastic Barrier, Cover: Gray CPE Rubber

Reinforcement:2-Spiral Polyester Plies

Temperature Range:-20°F to 212°F (-28°C to 100°C)

Standards:Exceeds ABYC H-24, SAE J1527, ISO 8469 B1, EPA Certified, CARB Executive Order, NMMA Type Accepted, CE certified

Special Notes:Extraordinary resistance to fuel permeation and ethanol degradation

Length Options:250’ (76m) Reels, 100’ (30.5m), 50’ (15m), 25’ (7.6m) Boxed, 10’ (3m) Polypack

Item code	Item name	Qty	List price	Your price	Total
MH-305-04	1/4" ID x 100' coil-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $475.00	Your price	Total $475.00
MH-305-04-25	1/4" ID x 25' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $154.01	Your price	Total $154.01
MH-305-04-50	1/4" ID x 50' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $285.83	Your price	Total $285.83
MH-305-04-100	1/4" ID x 100' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $554.45	Your price	Total $554.45
MH-305-05	5/16" ID x 100' coil-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $527.25	Your price	Total $527.25
MH-305-05-25	5/16" ID x 25' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $154.01	Your price	Total $154.01
MH-305-05-50	5/16" ID x 50' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $285.83	Your price	Total $285.83
MH-305-05-100	5/16" ID x 100' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $554.45	Your price	Total $554.45
MH-305-06	3/8" ID x 100' coil-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $573.50	Your price	Total $573.50
MH-305-06-25	3/8" ID x 25' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $165.58	Your price	Total $165.58
MH-305-06-50	3/8" ID x 50' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $308.95	Your price	Total $308.95
MH-305-06-100	3/8" ID x 100' box-Marine Type B1-15 Barrier Lined OutBoard Fuel Hose, Gray, USCG, ISO 8469, SAE J1527, NMMA T/A, CE Certified	Quantity	List price $600.70	Your price	Total $600.70
