IH-FUEL-365

Trident High-Performance Fuel Hose with Protective Barrier

Trident's Barrier Lined A1-15 Fuel Hose stands out for its high-performance handling of gasoline and diesel. The hose features an internal barrier, preventing fuel from making direct contact with the rubber and significantly enhancing its lifespan. Its resilience against various environmental factors makes it an excellent choice for demanding applications.

Applications:Suitable for both gasoline (up to E85) and diesel (up to B100)

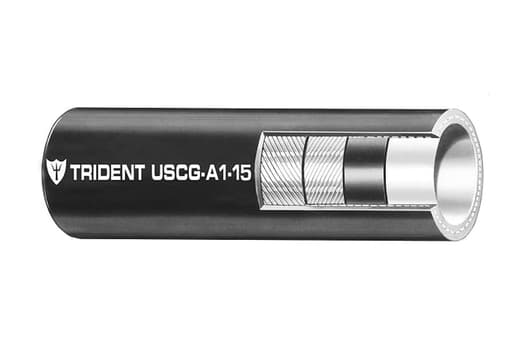

Construction:Tube: Nylon Internal Barrier, NBR; Cover: NBR/PVC Blend

Reinforcement:Polyester, 2-spiral

Temperature Range:-20°F to 212°F (-28°C to 100°C)

Resistance:High resistance to fuel permeation, aging, fire, heat, cold, and ozone

Certifications:Exceeds standards: ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008, EPA Certified Type A1-10; NMMA Type Accepted & CE certified

Available Lengths:250’ (76 m), 500’ (152 m) Reels, 100’ (30.5 m), 50’ (15 m), 25’ (7.6 m) Boxed

Item code	Item name	Qty	List price	Your price	Total
MH-365-04-250RL	1/4" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $1,305.88	Your price	Total $1,305.88
MH-365-04-25	1/4" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $154.51	Your price	Total $154.51
MH-365-04-50	1/4" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $287.71	Your price	Total $287.71
MH-365-04-100	1/4" ID x 100' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $558.91	Your price	Total $558.91
MH-365-05-250RL	5/16" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $1,480.00	Your price	Total $1,480.00
MH-365-05-0-5	5/16" ID x 5' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $30.19	Your price	Total $30.19
MH-365-05-25	5/16" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $172.27	Your price	Total $172.27
MH-365-05-50	5/16" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $323.23	Your price	Total $323.23
MH-365-05-100	5/16" ID x 100' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $629.95	Your price	Total $629.95
MH-365-06-250RL	3/8" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $1,480.00	Your price	Total $1,480.00
MH-365-06-0-5	3/8" ID x 5' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $30.19	Your price	Total $30.19
MH-365-06-25	3/8" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $172.27	Your price	Total $172.27
MH-365-06-50	3/8" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $323.23	Your price	Total $323.23
MH-365-06-100	3/8" ID x 100' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $629.95	Your price	Total $629.95
MH-365-08-250RL	1/2" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $1,937.06	Your price	Total $1,937.06
MH-365-08-0-5	1/2" ID x 5' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $39.52	Your price	Total $39.52
MH-365-08-25	1/2" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $218.89	Your price	Total $218.89
MH-365-08-50	1/2" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $416.47	Your price	Total $416.47
MH-365-08-100	1/2" ID x 100' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $822.45	Your price	Total $822.45
MH-365-10-10	5/8" ID x 10' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $104.87	Your price	Total $104.87
MH-365-10-20	5/8" ID x 20' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $201.66	Your price	Total $201.66
MH-365-10-250RL	5/8" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $2,372.35	Your price	Total $2,372.35
MH-365-10-0-5	5/8" ID x 5' poly bag-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $56.48	Your price	Total $56.48
MH-365-10-25	5/8" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $268.09	Your price	Total $268.09
MH-365-10-50	5/8" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $510.07	Your price	Total $510.07
MH-365-10-100	5/8" ID x 100' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $1,000.05	Your price	Total $1,000.05
MH-365-12-250RL	3/4" ID x 250' reel-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $3,482.35	Your price	Total $3,482.35
MH-365-12-25	3/4" ID x 25' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $381.31	Your price	Total $381.31
MH-365-12-50	3/4" ID x 50' box-Marine Barrier Lined Type A1-15 Fuel Hose, Black, USCG, ISO 7840, SAE J1527, NMMA T/A, CE Certified, ABYC H-24 & H-33, CARB A1-10	Quantity	List price $736.51	Your price	Total $736.51
