Understanding Dual Ferrule Instrumentation Tube Fittings: The Critical Role of the Back Ferrule
Understanding Dual Ferrule Instrumentation Tube Fittings: The Critical Role of the Back Ferrule

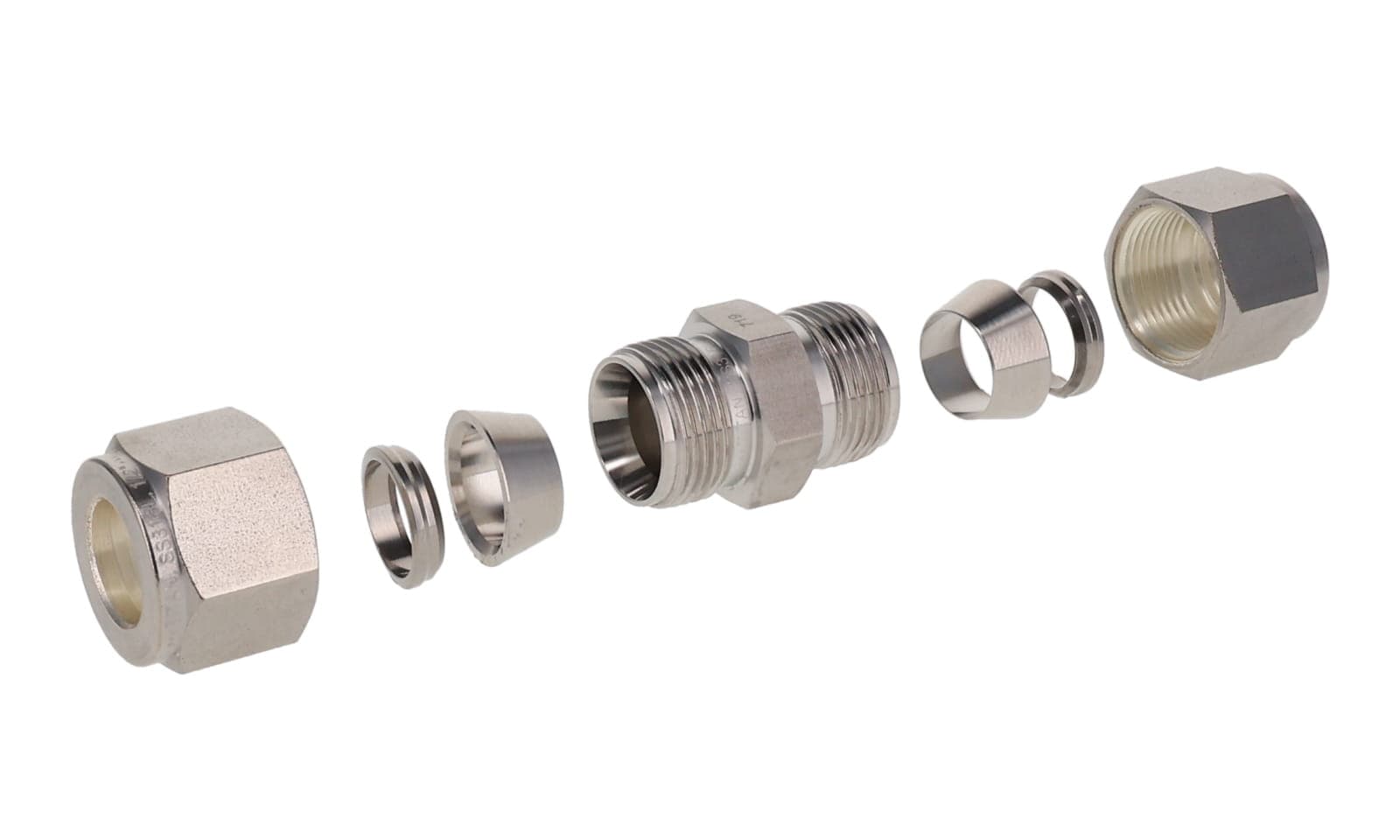

In the industrial sector, the reliability and precision of tube fittings are essential. This article will explore dual ferrule instrumentation tube fittings, emphasizing the difference between single and dual ferrule designs, and highlighting the crucial role of the back ferrule in a dual ferrule fitting.
Single vs. Dual Ferrule: Key Differences
The choice between single and dual ferrule fittings is usually a matter of preference. Single ferrule designs are simpler but sometimes have a slightly lower pressure rating. Historically instrumentation fittings were build with a two ferrule connection. The single ferrule was developed long after dual ferrule was used in the marketplace
The Importance of the Back Ferrule in Dual Ferrule Fittings
The back ferrule is a critical component in dual ferrule fittings, performing several key functions:
1. Sealing: It is the main component that “bites” into the tubing to create a leak-proof seal with the tube.
2. Tube Gripping: Essential for applications with vibration or dynamic loads, the back ferrule ensures a firm grip on the tube.
3. Compensation for Temperature Changes: It adjusts to thermal expansion and contraction, maintaining a consistent seal.
4. Maintenance: Typically the back ferrule is only used once to make a connection onto the tube. In order to make a new connection the tubing is usually cut and the back ferrule is replace with a new ferrule.
Heat Treatment of the Back Ferrule
The performance of the back ferrule heavily relies on its material properties. Heat treatment, involving controlled heating and cooling, enhances its strength and durability. This process includes heating, quenching (rapid cooling), and tempering (reheating to a lower temperature), resulting in a more resilient component. The process is used to achieve a higher hardness than the stainless steel tubing being used and allows the back ferrule to “bite” into the tubing.
Selecting the Right Fittings for Industrial Applications
In choosing tube fittings for demanding industrial applications, consider these factors:
1. Understand Application Needs: Know the pressure, temperature, and chemical requirements of your system. Knowing the material flowing through the tubing is important. For example high water environments can be very corrosive to a back ferrule.
2. Quality of Materials: Ensure the fittings, especially the back ferrule, are made from high-quality, heat-treated materials.
3. Compliance with Standards: Choose fittings that meet industry standards, indicating quality and reliability.
4. Supplier Reputation: Select a reputable supplier with a track record of delivering quality products.
Conclusion: The Essential Role of the Back Ferrule
The back ferrule in dual ferrule instrumentation tube fittings plays a vital role in ensuring the safety and reliability of industrial connections. Its significance in maintaining integrity under various conditions is crucial. Understanding these components helps professionals make informed decisions, leading to more efficient and long-lasting systems.
Conclusion
Remember, in industrial fittings, even the smallest components can have a significant impact on the overall system's effectiveness.
