FS6802

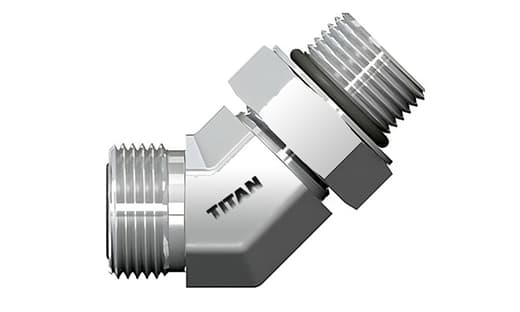

SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male 45° Elbow

O-Ring Face Seal (ORFS) Adapters are forged from high-pressure steel and treated with Carbon Zinc Trivalent for enhanced corrosion resistance. Adhering to SAE J5143 standards, these adapters feature straight threads and an O-ring, ensuring a tight seal between male and female connections. Fittings can also adapt to various other thread types, including JIC, NPT, and NPSM.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
FS6802-04-04	45° Elbow 1/4" Male ORFS x 1/4" ORB Male (7/16"-20 Straight Thread)	Quantity	List price $5.57	Your price	Total $5.57
FS6802-04-06	45° Elbow 1/4" Male ORFS x 3/8" ORB Male (9/16"-18 Straight Thread)	Quantity	List price $7.16	Your price	Total $7.16
FS6802-06-04	45° Elbow 3/8" Male ORFS x 1/4" ORB Male (7/16"-20 Straight Thread)	Quantity	List price $6.96	Your price	Total $6.96
FS6802-06-06	45° Elbow 3/8" Male ORFS x 3/8" ORB Male (9/16"-18 Straight Thread)	Quantity	List price $7.40	Your price	Total $7.40
FS6802-06-08	45° Elbow 3/8" Male ORFS x 1/2" ORB Male (3/4"-16 Straight Thread)	Quantity	List price $9.39	Your price	Total $9.39
FS6802-06-10	45° Elbow 3/8" Male ORFS x 5/8" ORB Male (7/8"-14 Straight Thread)	Quantity	List price $14.96	Your price	Total $14.96
FS6802-08-06	45° Elbow 1/2" Male ORFS x 3/8" ORB Male (9/16"-18 Straight Thread)	Quantity	List price $8.92	Your price	Total $8.92
FS6802-08-08	45° Elbow 1/2" Male ORFS x 1/2" ORB Male (3/4"-16 Straight Thread)	Quantity	List price $7.82	Your price	Total $7.82
FS6802-08-10	45° Elbow 1/2" Male ORFS x 5/8" ORB Male (7/8"-14 Straight Thread)	Quantity	List price $15.04	Your price	Total $15.04
FS6802-08-12	45° Elbow 1/2" Male ORFS x 3/4" ORB Male (1 1/16"-12 Straight Thread)	Quantity	List price $19.12	Your price	Total $19.12
FS6802-10-08	45° Elbow 5/8" Male ORFS x 1/2" ORB Male (3/4"-16 Straight Thread)	Quantity	List price $16.80	Your price	Total $16.80
FS6802-10-10	45° Elbow 5/8" Male ORFS x 5/8" ORB Male (7/8"-14 Straight Thread)	Quantity	List price $14.80	Your price	Total $14.80
FS6802-10-12	45° Elbow 5/8" Male ORFS x 3/4" ORB Male (1 1/16"-12 Straight Thread)	Quantity	List price $19.12	Your price	Total $19.12
FS6802-12-08	45° Elbow 3/4" Male ORFS x 1/2" ORB Male (#08 Straight Thread)	Quantity	List price $18.13	Your price	Total $18.13
FS6802-12-10	45° Elbow 3/4" Male ORFS x 5/8" ORB Male (7/8"-14 Straight Thread)	Quantity	List price $18.88	Your price	Total $18.88
FS6802-12-12	45° Elbow 3/4" Male ORFS x 3/4" ORB Male (1 1/16"-12 Straight Thread)	Quantity	List price $19.04	Your price	Total $19.04
FS6802-12-16	45° Elbow 3/4" Male ORFS x 1" ORB Male (1 5/16"-12 Straight Thread)	Quantity	List price $31.44	Your price	Total $31.44
FS6802-16-12	45° Elbow 1" Male ORFS x 3/4" ORB Male (1 1/16"-12 Straight Thread)	Quantity	List price $30.00	Your price	Total $30.00
FS6802-16-16	45° Elbow 1" Male ORFS x 1" ORB Male (1 5/16"-12 Straight Thread)	Quantity	List price $29.52	Your price	Total $29.52
FS6802-16-20	45° Elbow 1" Male ORFS x 1 1/4" ORB Male (1 5/8"-12 Straight Thread)	Quantity	List price $42.88	Your price	Total $42.88
FS6802-20-20	45° Elbow 1-1/4" Male ORFS x 1 1/4" ORB Male (1 5/8"-12 Straight Thread)	Quantity	List price $47.04	Your price	Total $47.04
FS6802-24-24	45° Elbow 1-1/2" Male ORFS x 1 1/2" ORB Male (1 7/8"-12 Straight Thread)	Quantity	List price $130.90	Your price	Total $130.90

Items of 22 items

Page:of 1
