2503

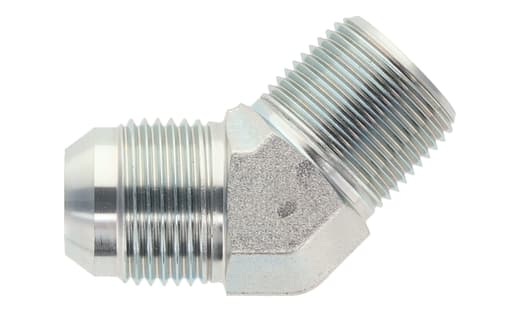

37° JIC Male x NPTF Male Pipe 45 ° Elbow

JIC (AN Fittings) are forged from robust carbon steel and enhanced with a zinc-trivalent coating, these fittings exhibit both high-pressure resistance and resilience against wear and corrosion. Suited for a spectrum of industrial applications, the JIC fittings utilize a 37° flare connection in accordance with the SAE J514 standard.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
2503-02-02	45° Elbow 1/8" Male JIC (5/16"-24 thread) x 1/8" NPTF Male	Quantity	List price $6.88	Your price	Total $6.88
2503-03-02	45° Elbow 3/16" Male JIC (3/8"-24 thread) x 1/8" NPTF Male	Quantity	List price $4.16	Your price	Total $4.16
2503-04-02	45° Elbow 1/4" Male JIC (7/16"-20 thread) x 1/8" NPTF Male	Quantity	List price $3.69	Your price	Total $3.69
2503-04-04	45° Elbow 1/4" Male JIC (7/16"-20 thread) x 1/4" NPTF Male	Quantity	List price $4.16	Your price	Total $4.16
2503-04-06	45° Elbow 1/4" Male JIC (7/16"-20 thread) x 3/8" NPTF Male	Quantity	List price $5.70	Your price	Total $5.70
2503-04-08	45° Elbow 1/4" Male JIC (7/16"-20 thread) x 1/2" NPTF Male	Quantity	List price $6.55	Your price	Total $6.55
2503-05-02	45° Elbow 5/16" Male JIC (1/2"-20 thread) x 1/8" NPTF Male	Quantity	List price $6.35	Your price	Total $6.35
2503-05-04	45° Elbow 5/16" Male JIC (1/2"-20 thread) x 1/4" NPTF Male	Quantity	List price $4.68	Your price	Total $4.68
2503-05-06	45° Elbow 5/16" Male JIC (1/2"-20 thread) x 3/8" NPTF Male	Quantity	List price $11.19	Your price	Total $11.19
2503-06-02	45° Elbow 3/8" Male JIC (9/16"-18 thread) x 1/8" NPTF Male	Quantity	List price $6.00	Your price	Total $6.00
2503-06-04	45° Elbow 3/8" Male JIC (9/16"-18 thread) x 1/4" NPTF Male	Quantity	List price $4.42	Your price	Total $4.42
2503-06-06	45° Elbow 3/8" Male JIC (9/16"-18 thread) x 3/8" NPTF Male	Quantity	List price $5.86	Your price	Total $5.86
2503-06-08	45° Elbow 3/8" Male JIC (9/16"-18 thread) x 1/2" NPTF Male	Quantity	List price $7.06	Your price	Total $7.06
2503-06-12	45° Elbow 3/8" Male JIC (9/16"-18 thread) x 3/4" NPTF Male	Quantity	List price $16.19	Your price	Total $16.19
2503-08-04	45° Elbow 1/2" Male JIC (3/4"-16 thread) x 1/4" NPTF Male	Quantity	List price $7.19	Your price	Total $7.19
2503-08-06	45° Elbow 1/2" Male JIC (3/4"-16 thread) x 3/8" NPTF Male	Quantity	List price $5.72	Your price	Total $5.72
2503-08-08	45° Elbow 1/2" Male JIC (3/4"-16 thread) x 1/2" NPTF Male	Quantity	List price $6.43	Your price	Total $6.43
2503-08-12	45° Elbow 1/2" Male JIC (3/4"-16 thread) x 3/4" NPTF Male	Quantity	List price $10.55	Your price	Total $10.55
2503-10-04	45° Elbow 5/8" Male JIC (7/8"-14 thread) x 1/4" NPTF Male	Quantity	List price $9.51	Your price	Total $9.51
2503-10-06	45° Elbow 5/8" Male JIC (7/8"-14 thread) x 3/8" NPTF Male	Quantity	List price $9.80	Your price	Total $9.80
2503-10-08	45° Elbow 5/8" Male JIC (7/8"-14 thread) x 1/2" NPTF Male	Quantity	List price $8.16	Your price	Total $8.16
2503-10-12	45° Elbow 5/8" Male JIC (7/8"-14 thread) x 3/4" NPTF Male	Quantity	List price $10.31	Your price	Total $10.31
2503-12-08	45° Elbow 3/4" Male JIC (1 1/16"-12 thread) x 1/2" NPTF Male	Quantity	List price $11.09	Your price	Total $11.09
2503-12-12	45° Elbow 3/4" Male JIC (1 1/16"-12 thread) x 3/4" NPTF Male	Quantity	List price $11.41	Your price	Total $11.41
2503-12-16	45° Elbow 3/4" Male JIC (1 1/16"-12 thread) x 1" NPTF Male	Quantity	List price $18.27	Your price	Total $18.27
2503-14-12	45° Elbow 7/8" Male JIC (1 3/16"-12 thread) x 3/4" NPTF Male	Quantity	List price $20.32	Your price	Total $20.32
2503-16-08	45° Elbow 1" Male JIC (1 5/16"-12 thread) x 1/2" NPTF Male	Quantity	List price $19.46	Your price	Total $19.46
2503-16-12	45° Elbow 1" Male JIC (1 5/16"-12 thread) x 3/4" NPTF Male	Quantity	List price $29.32	Your price	Total $29.32
2503-16-16	45° Elbow 1" Male JIC (1 5/16"-12 thread) x 1" NPTF Male	Quantity	List price $19.72	Your price	Total $19.72
2503-16-20	45° Elbow 1" Male JIC (1 5/16"-12 thread) x 1-1/4" NPTF Male	Quantity	List price $35.06	Your price	Total $35.06
2503-20-16	45° Elbow 1-1/4" Male JIC (1-7/8"-12 thread) x 1" NPTF Male	Quantity	List price $61.02	Your price	Total $61.02
2503-20-20	45° Elbow 1-1/4" Male JIC (1-7/8"-12 thread) x 1-1/4" NPTF Male	Quantity	List price $51.34	Your price	Total $51.34
2503-20-24	45° Elbow 1-1/4" Male JIC (1-7/8"-12 thread) x 1-1/2" NPTF Male	Quantity	List price $47.00	Your price	Total $47.00
2503-24-20	45° Elbow 1-1/2" Male JIC (3/4"-16 thread) x 1-1/4" NPTF Male	Quantity	List price $46.50	Your price	Total $46.50
2503-24-24	45° Elbow 1-1/2" Male JIC (3/4"-16 thread) x 1-1/2" NPTF Male	Quantity	List price $78.70	Your price	Total $78.70
2503-32-32	45° Elbow 2" Male JIC (2 1/2"-12 thread) x 2" NPTF Male	Quantity	List price $156.08	Your price	Total $156.08

Items of 36 items
